Removing energy with an exoskeleton reduces the metabolic cost of walking

Humans are exceptional walkers, with our gait continuously adapting over evolutionary (1) and developmental time scales (2). In the absence of frictional losses, walking on level ground at a constant speed theoretically requires no energy input (3), as passive mechanisms permit the exchange of kinetic and potential energy (4, 5). In reality, however, walking is metabolically expensive. Walking requires more energy than any other activity of daily living (6, 7). During walking, humans expend metabolic energy, in part, to restore dissipated kinetic energy (8).

Exoskeletons have been developed to assist the lower-limb muscles in restoring dissipated kinetic energy to improve walking efficiency. Active (powered) exoskeletons use actuators, such as electric motors, to perform a portion of the positive joint work that is naturally done by concentric muscle contractions (9, 10). These devices essentially add energy to the human-device system to supplement the metabolic energy required for walking (fig. S1). Passive (unpowered) exoskeletons use elastic mechanisms to aid users’ muscle-tendon units in storing and transferring energy from one gait phase to another. By assisting energy recycling, these devices decrease the force that muscle-tendon units must hold during isometric contractions (11).

Although existing devices assist users by adding or recycling energy, is it possible to improve walking efficiency by purely removing energy? This would require a different design approach: Instead of assisting muscles in concentric or isometric contractions, devices would need to assist muscles in producing force during eccentric contractions. The strategy of removing energy is similar to those employed by some biomechanical energy harvesters optimized to produce electrical power (12–14). Unfortunately, these devices have not been able to provide their users with a metabolic benefit over carrying their own weight, let alone an advantage over normal walking [(12–14); also see supplementary materials]. Because the metabolic cost of walking can be explained primarily by the cost of actively generating muscle force (15), we hypothesized that we could optimize these devices for metabolic cost reduction by designing them with the aim of decreasing muscle activation instead of producing electrical power.

Assisting muscles in producing force during eccentric contractions is challenging. Substantial negative joint work during walking results from the passive deformation of soft tissues (8), such as ligaments. These tissues do not require metabolic energy and so cannot be metabolically assisted. Furthermore, some soft tissues store and return energy that would otherwise be dissipated (5, 8); thus, disrupting these energy return mechanisms could lead to a substantial energetic penalty because the body must compensate through concentric contractions. Because eccentric muscle contractions are already metabolically efficient compared with concentric contractions (16), assisting muscles in eccentric contractions should yield only a small energetic advantage. Therefore, assisting muscles in eccentric contractions may require the exoskeleton to apply a load more accurately and precisely, regarding both magnitude and timing, than is required for concentric contraction and powered exoskeletons (9, 10, 17).

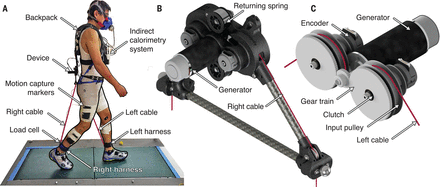

We built a lightweight, backpack-mounted exoskeleton (1.059 kg; Fig. 1) to assist the hamstrings in producing force by applying a knee flexion moment during the terminal swing phase of the gait cycle. This device consists of cables that are attached by harnesses to the user’s lower legs and extend upward to connect to input pulleys. As the user’s knee extends forward during the swing period, the swinging leg’s input cable is unspooled and drives the input pulley. These pulleys work in combination with a gear train and roller clutches to convert the cables’ linear movements into rotational motion while simultaneously amplifying and integrating the cables’ motions before engaging a single generator. During stance, the clutches decouple the input pulleys from the gear train, allowing the cables to be gathered back onto the input pulleys by returning springs. The clutches also enable the device to apply mechanical load only during the swing period, leaving the lower limbs unencumbered by the exoskeleton during the stance period. The back electromotive force of the generator applies the mechanical load to the input cables and, in turn, to the user (further described in the supplementary materials, movies S1 and S2, and data S3).

Biomechanical energy harvesters traditionally apply a mechanical loading profile onto their users that is proportional to the motion input into the device (12–14). This technique is simple to implement because it requires no active control, but it may sacrifice user assistance. In this study, we implemented an active control system that enabled our device to apply a controllable mechanical load by regulating the generator’s back electromotive force. Exoskeletons have successfully reduced the metabolic energy requirement of walking by using assistive loading profiles that mimic either natural joint moment or power profiles (18–21). However, these profiles do not account for the contribution of passive elements that cannot be assisted. To specifically target the hamstrings and avoid interfering with natural energy return mechanisms, we implemented a profile that resembles the muscles’ contribution to the net knee moment during the terminal swing phase. We derived this muscle-centric profile by subtracting the estimated contribution of passive elements, based on results of Whittington et al. (22), from the net knee moment profile. We then scaled the magnitude of the resultant profile to the user’s body mass. The control system and loading profiles are described in the supplementary materials, figs. S2 and S3, and data S4.

We conducted treadmill-walking experiments with 10 healthy male participants to determine the metabolic and biomechanical effects of the muscle-centric profile compared with both a traditional harvesting profile and normal walking. Minimal changes in both knee joint angles and net joint moments indicate that neither loading profile hindered normal knee function (Fig. 2, A to C), which can cause deviations from normal walking such as a stiff knee gait (14). The lack of effect on normal knee function was further confirmed by a lack of changes in spatial-temporal parameters such as stride length and ground contact time. The average angles, moments, and powers for the ankle, knee, and hip joints are presented in fig. S4 and data S5 and S6.

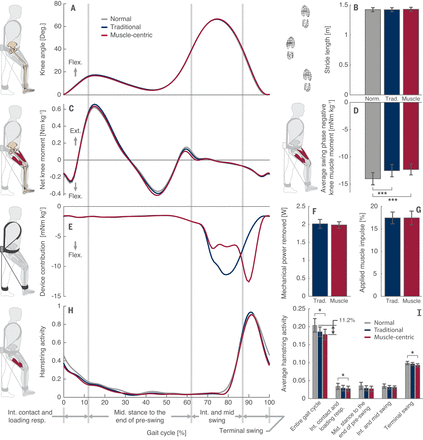

One difference between the two loading profiles (Fig. 2E) was that the moment applied about the user’s knee by the traditional profile peaked during mid-swing (80.1 ± 0.5% gait cycle, mean ± SEM), whereas that applied by the muscle-centric profile peaked during terminal swing (90.7 ± 0.2% gait cycle). Both loading profiles significantly reduced the estimated average muscle contribution to the negative net knee moment during the swing period [n = 10 participants; repeated-measures analysis of variance (ANOVA), F_2,18 = 17.806, P < 0.001, η_p² = 0.664], with the traditional profile reducing it by 11.0 ± 1.8% [least significant difference (LSD) post hoc analysis: P < 0.001] and the muscle-centric profile reducing it by 12.0 ± 2.0% (P = 0.001; Fig. 2D).

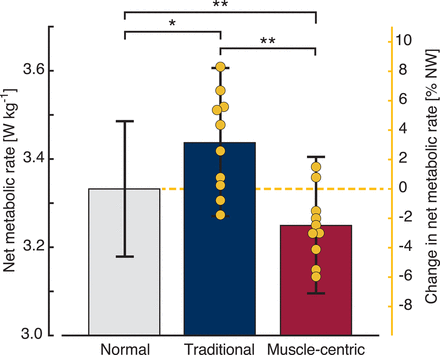

Although both profiles removed a similar amount of mechanical power (traditional: 2.01 ± 0.12 W, muscle-centric: 1.98 ± 0.09 W; Fig. 2F) and applied a similar percentage of the muscles’ angular impulses (traditional: 17.4 ± 1.3%, muscle-centric: 17.4 ± 1.5%; Fig. 2G), the muscle-centric profile reduced the energy requirement of walking by 2.5 ± 0.8% [n = 10; one-way repeated-measures ANOVA; F_2,18 = 12.714, P < 0.001, η_p² = 0.586; LSD post hoc analysis: mean diff. (MD) = −0.082 ± 0.024 W kg⁻¹, P = 0.008, 95% CI (−0.137, −0.027)], whereas the traditional profile increased the energy requirement by 3.1 ± 1.1% [MD = 0.106 ± 0.039 W kg⁻¹, P = 0.024, 95% CI (0.018, 0.195)]. The difference between profiles was 0.19 ± 0.05 W kg⁻¹ [MD = 0.188 ± 0.046 W kg⁻¹, P = 0.003, 95% CI (0.085, 0.291); Fig. 3 and table S1].

Because active skeletal muscles are the primary consumers of metabolic energy during walking (23), the decrease in metabolic cost observed with the muscle-centric profile was accompanied by an 11.2 ± 3.8% reduction in average hamstring activation from normal walking (n = 10; repeated-measures ANOVA, F_2,18 = 4.506, P = 0.026, η_p² = 0.334; LSD post hoc analysis: P = 0.035; Fig. 2, H and I). This decrease primarily occurred during terminal swing (87 to 100% gait cycle; n = 10; one-way repeated-measures ANOVA; F_2,18 = 4.022, P = 0.036, η_p² = 0.309; LSD post hoc analysis: P = 0.021) but continued into the initial contact and loading response phases (0 to 12% gait cycle; n = 10; one-way repeated-measures ANOVA; F_1.255,11.293 = 5.178, P = 0.037, η_p² = 0.365; LSD post hoc analysis: P = 0.026). By contrast, the traditional profile did not significantly alter hamstring activity (P = 0.102).

Improper energy extraction could increase antagonistic muscle activity, as the body would need to perform positive muscle work to counteract the negative work performed by the device and recoup lost energy or provide joint stability. However, there was no significant change in overall average quadriceps activity in either loading condition, indicating that neither profile interfered with natural energy return mechanisms. Data for the quadriceps muscle group and individual muscles are presented in figs. S5 and S6 and data S5 and S6.

In addition to decreasing the metabolic cost of walking by using the muscle-centric profile, the device also converted the removed kinetic energy into 0.25 ± 0.02 W of electrical power. When applying the traditional profile, the exoskeleton produced twice the amount of electrical power (0.53 ± 0.03 W), albeit at a metabolic disadvantage.

The increase in metabolic cost associated with the traditional profile was not unexpected, but the cause is unclear. Although both profiles yielded similar reductions in average muscle joint moments, the traditional profile may not have reduced the muscle force and, consequently, the muscles’ energy consumption to the same extent as the muscle-centric profile. This is because the muscle-tendon moment arms of the hamstrings are not directly proportional to muscle joint moments throughout gait (24). Additionally, the force generation and energy consumption of muscles depend on multiple parameters, including operating length and contractile velocity, which vary throughout the gait cycle (25, 26). Furthermore, hamstrings are maximally extended during terminal swing, owing to simultaneous hip flexion and knee extension (27). As such, force production may be most metabolically costly during this stage. Therefore, force production may be more readily assisted during terminal swing relative to other swing phases (see supplementary materials). Additionally, the two profiles’ different effects on the hip may have contributed to the observed differences in metabolic cost (see supplementary materials). Our results provide further evidence of the disconnect between lower-limb joint dynamics and metabolic expenditure (11, 28). On the basis of these findings, we advocate for exoskeletons that use muscle-specific parameters and profiles to provide metabolic assistance (29).

We have demonstrated that exclusively removing energy is a viable method for reducing the metabolic cost of walking. Although greater metabolic cost reductions have been achieved through assisting concentric and isometric muscle contractions, our results demonstrate that assisting eccentric contractions is possible and can yield the concurrent benefit of electrical power production. These results indicate that lower-limb muscles can be assisted during the swing period of gait, despite previous assumptions that this period is primarily passive, requiring little to no muscle activity (30). A notable corollary to the present findings is that metabolic cost is likely not the only variable involved in gait adaptation, given that we observed little impact of our exoskeleton on gait parameters while reducing metabolic cost. Our findings highlight the importance of characterizing how muscles consume metabolic energy to perform mechanical tasks so that researchers can better understand activities such as walking and produce more efficient assistive devices.

Acknowledgments: We thank K. Deluzio for supplying experimental equipment in the Queen’s University Human Mobility Research Laboratory and T. Bryant, C. Soutar, and P. Grenier for providing editorial feedback. Funding: This work was supported by grants from NSERC to Q.L. (RGPIN-2020-04771) and Y.-F.L. (RGPIN-2019-06635) and an NSERC Postgraduate Scholarship to M.S. Author contributions: M.S. and Q.L. designed the mechanical system. M.S. fabricated the device. M.S., S.B., A.D., and Y.-F.L. designed the electrical and control systems. M.S. and Q.L. designed and conducted experiments and processed and analyzed the data. All authors prepared, reviewed, and approved the manuscript. Competing interests: M.S., Y.-F.L., and Q.L. are the assignees on the patent of an energy harvesting technology related to the work in this manuscript (US Patent 9,407,125 B2). The authors declare no other competing interests. Data and materials availability: All data are included in the manuscript and supplementary materials.
